10-level irreversible thermometer (pack 10 units)

This 10-level irreversible temperature indicator is stuck on the surface or product in which temperature needs to be controlled. Each temperature point is marked in ºC and ºF. When reaching the temperature marked, the point turns black, thus indicating that the specific temperature has been reached. The change made is permanent, therefore, if the temperature decreases, the point will remain black. This functionality allows to monitor if a specific temperature has been reached or not at any time.

Available in 4 different temperatureranges:

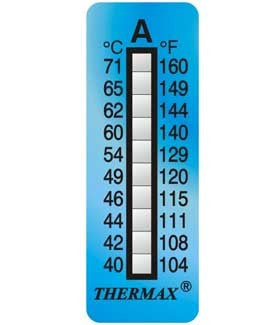

• Range A: 40ºC - 71ºC / (104-160ºF) Temperature points ºC: 40 42 44 46 49 54 60 62 65 71ºC

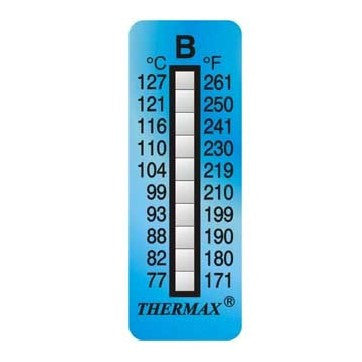

• Range B: 77ºC - 127ºC / (171-261ºF) Temperature points ºC: 77 82 88 93 99 104 110 116 121 127ºC
• Range C: 132ºC - 182ºC / (270-360ºF) Temperature points ºC: 132 138 143 149 154 160 166 171 177 182ºC

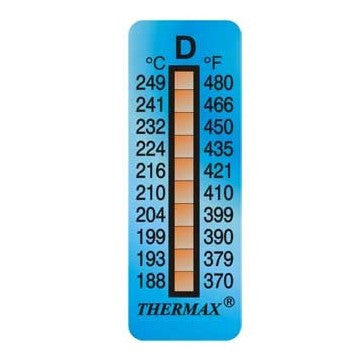

• Range D: 188ºC - 249ºC / (370-480ºF) Temperature points ºC: 188 193 199 204 210 216 224 232 241 249ºC

Supply: Packets with 10 units.

Self-adhesive irreversible temperature indicator with 10 temperature points.

Dimensions: 51 x 18 mm

Type: Vertical

These 10-level irreversible thermometers are made of a heat-sensitive material that is printed on self-adhesive paper and encapsulated (laminated) with transparent polyester for protection. Flexibility of these indicators allows them to be used on curved surfaces. In addition, they are resistant to oil, vapour and water. Therefore, they can be used wherever.

Accuracy of these temperature indicators is ±1 ºC for temperatures up to 100ºC and ±1 % for temperatures above 100ºC.

Made according to ISO 9001

This thermometer meets REACH Annex XVII with regard to the content of chemical substances that may affect the health.

The 10-level irreversible temperature indicators are suitable for applications in which a non-assisted temperature control is required. As they are stuck on the product or surface, they accurately give their temperature. The fact of having 10 temperature points make them be suitable for situations in which a wide range of temperatures needs to be checked. This is the indicator with the highest number of temperature points.

Highly useful in industrial processes, in the food and pharmaceutical industry. Generally, they are ideal in processes in which a non-assisted temperature controlis required. These are some of their applications:

Industry

• Oven temperature
• Thermal treatment for mechanical parts
• Manufacturing of photovoltaic modules

Food

• Sterilisation of plastic containers
• Glass sterilisation
• Sterilisation of food with heating processes
• Boiling processes for jams and pâtés

Medical and pharmaceutical industry

• Sterilisation of equipment
• Temperature control in chemical or pharmaceutical laboratories
